Compression-Resilience Performance
In the previous article, we talked about the definitions of compressibility and resilience. In this one, we will break down their standard testing procedures and the calculation methods for key data.
Testing Process of Gasket Compression and Resilience

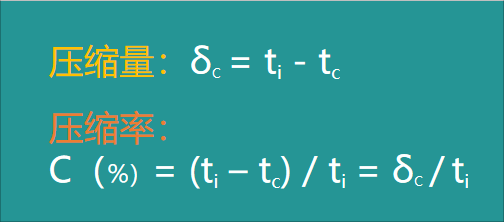

Compressibility and resilience are respectively represented by compression ratio and resilience ratio. Let's take a look at the testing process of gasket compression and resilience.

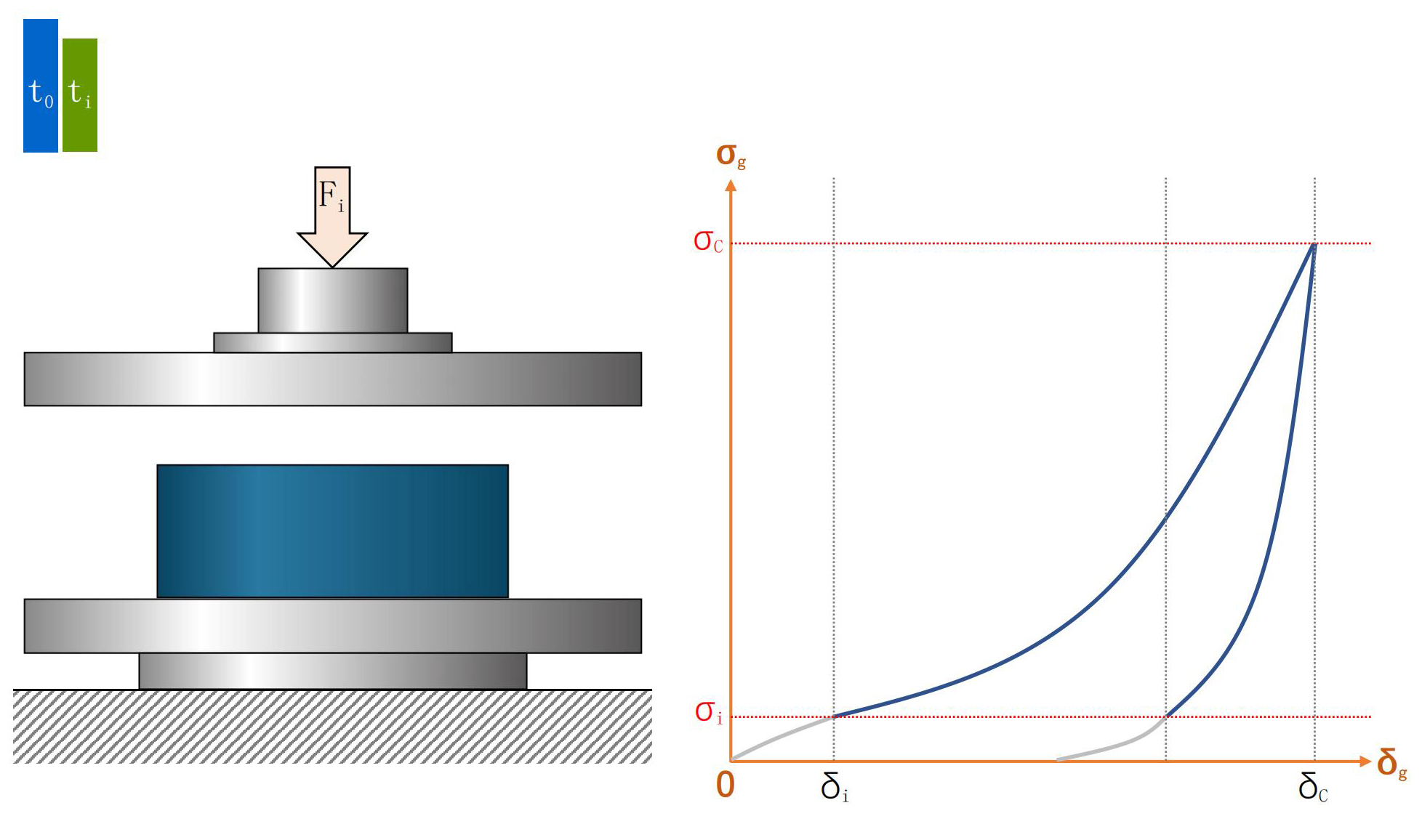

Several basic parameters need to be clarified before the test: The nominal thickness of the gasket is t?, but the actual thickness has deviations. When conducting the compression ratio and resilience ratio test, the test starts with the "initial load". First, apply the initial load F? or initial stress σ?, and the compressed thickness of the gasket at this time is δ?, with the initial thickness recorded as T?.

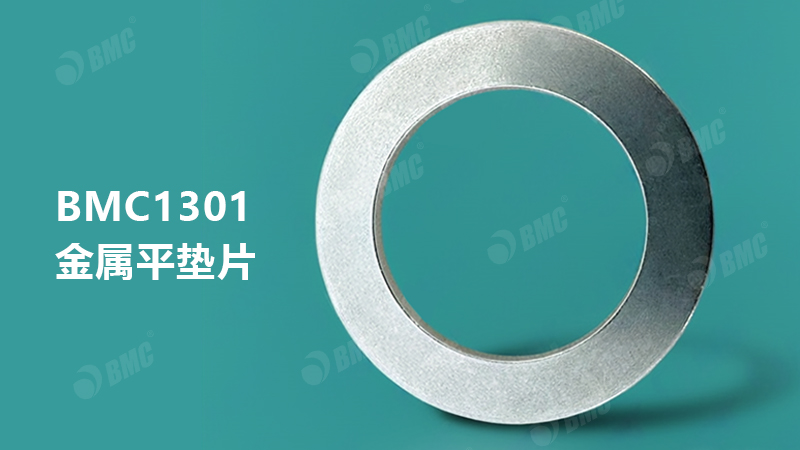

BMC1301: Used for sealing parts such as pressure vessel towers, tanks, and valve covers
Step 1
The test is divided into three steps: The first step is loading. Apply the test load Fc (or test stress σc) at the loading rate specified in the corresponding standard. At this time, the gasket thickness becomes Tc, and record the thickness change in this stage.
Step 2
The second step is load holding. Maintain the test load for a period of time to ensure stable deformation.
Step 3
The third step is unloading. Unload to the initial load F? at the specified rate, and the rebounded thickness of the gasket at this time is recorded as Tr.
These test data are important basis for subsequent gasket selection. In the next article, we will compare the compression ratios and resilience ratios of gaskets made of different materials to help you understand the differences more intuitively.
Ingenious Seal Mastery
For sealing leakage issues, Baohua provides solutions. If you have any doubts about sealing technology, please pay attention to Suzhou Baohua and feel free to consult, comment, or leave a message! Thank you all! We will continue to talk about compression - recovery performance. See you next time!
